1. Introduction to High-Density Polyethylene Interlocking Floor Systems
In modern industrial facilities, floor surfaces endure relentless punishment from heavy forklift traffic, dropped steel components, chemical spillage, and aggressive washdowns. Traditional concrete dusting and epoxy delamination represent continuous operational hazards and financial drains. HDPE Industrial Interlocking Floor Mats (HDPE工业锁扣地垫) have emerged as the premier modular flooring solution engineered specifically for high-stress manufacturing environments, cleanrooms, and logistic hubs.
Manufactured from 100% prime virgin high-density polyethylene (HDPE) polymers, these mats combine high impact strength, low coefficient of friction, exceptional chemical inertia, and an ingenious mechanical puzzle-tooth interlocking mechanism. The result is a resilient, protective, and fully modular industrial surface that installs rapidly without adhesives.
2. Key Mechanical Properties & Engineering Specifications
JSLT Polymers® engineers its industrial interlocking mats to withstand extreme point loading and heavy dynamic traffic. Below are the verified technical parameters:
| Property Parameter | Test Standard | Verified Value |
|---|---|---|
| Material Density | ISO 1183 | 0.955 – 0.965 g/cm³ |
| Tensile Strength at Yield | ISO 527 | ≥ 26 MPa |
| Compressive Load Capacity | ASTM D695 | Up to 80 Metric Tons / m² |
| Water Absorption (24h) | ISO 62 | < 0.01% (Zero absorption) |
| Operating Temperature Range | Continuous | -40°C to +80°C |
| Slip Resistance Rating | DIN 51130 | R11 (Willow-leaf / Diamond tread) |
3. Large Format Sizing (4000×2000mm) & Seam Minimization
While generic modular tiles measure 500×500mm, JSLT offers large-format extrusions up to 4000 × 2000 mm. By utilizing large sheets:
- 75% Seam Reduction: Drastically cuts joint gaps where dirt, liquids, and oils can collect.
- Unmatched Wheel Stability: Forklifts and pallet jacks roll smoothly across broad slabs without catching edges.
- Rapid Installation: A two-person crew can cover 500 m² in under 4 hours using rubber dead-blow mallets.
4. Precision Male-Female Interlocking Mechanism
The interlocking joint is CNC precision-milled with tight dimensional tolerances (+/-0.15mm). When engaged, the male and female puzzle teeth create a rigid planar lock that resists lateral thermal expansion and wheel braking shear forces. Beveled transition ramps in safety yellow ensure zero-trip transitions for pedestrians and rolling stock.
Factory Demonstration Videos

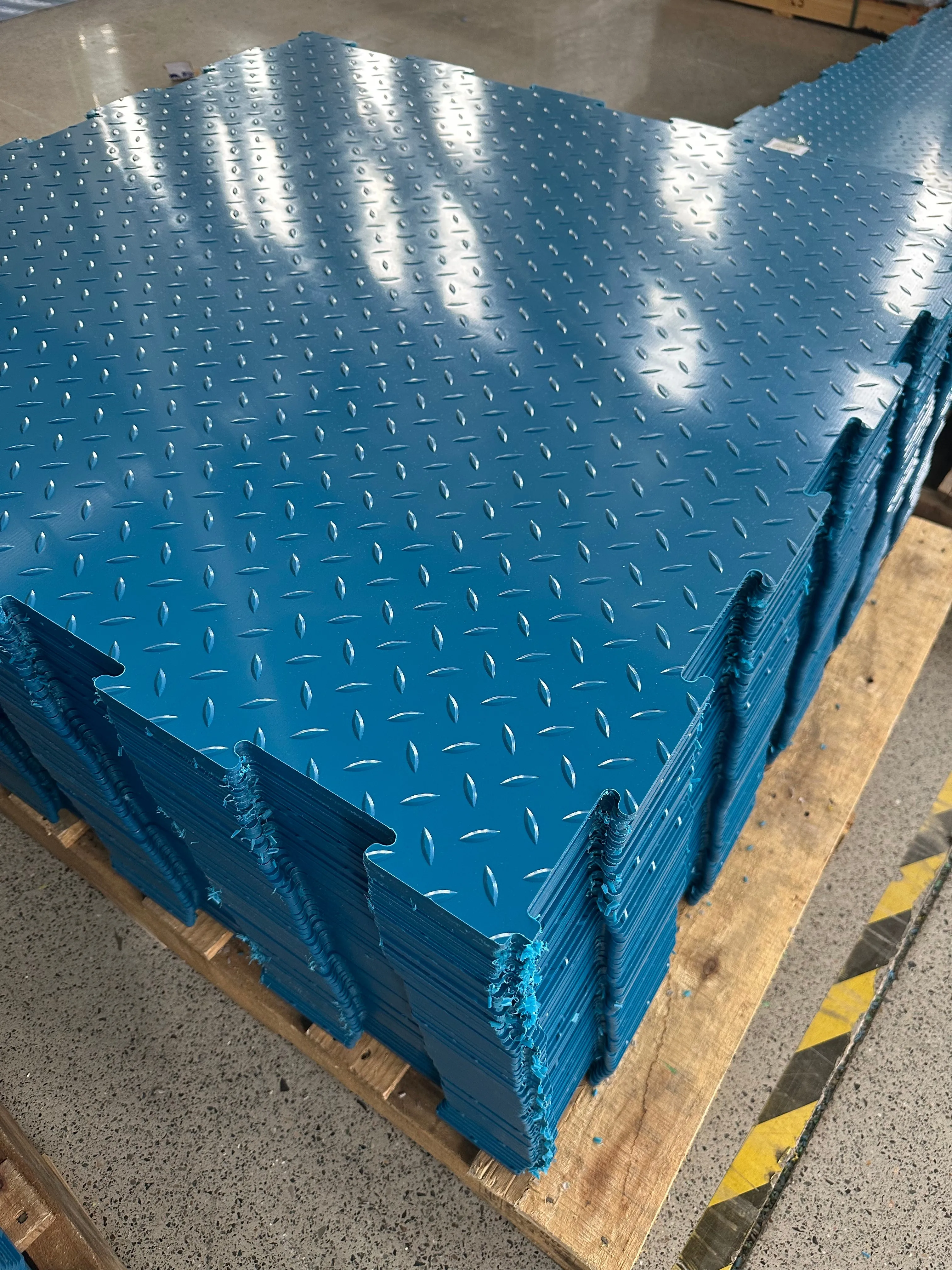

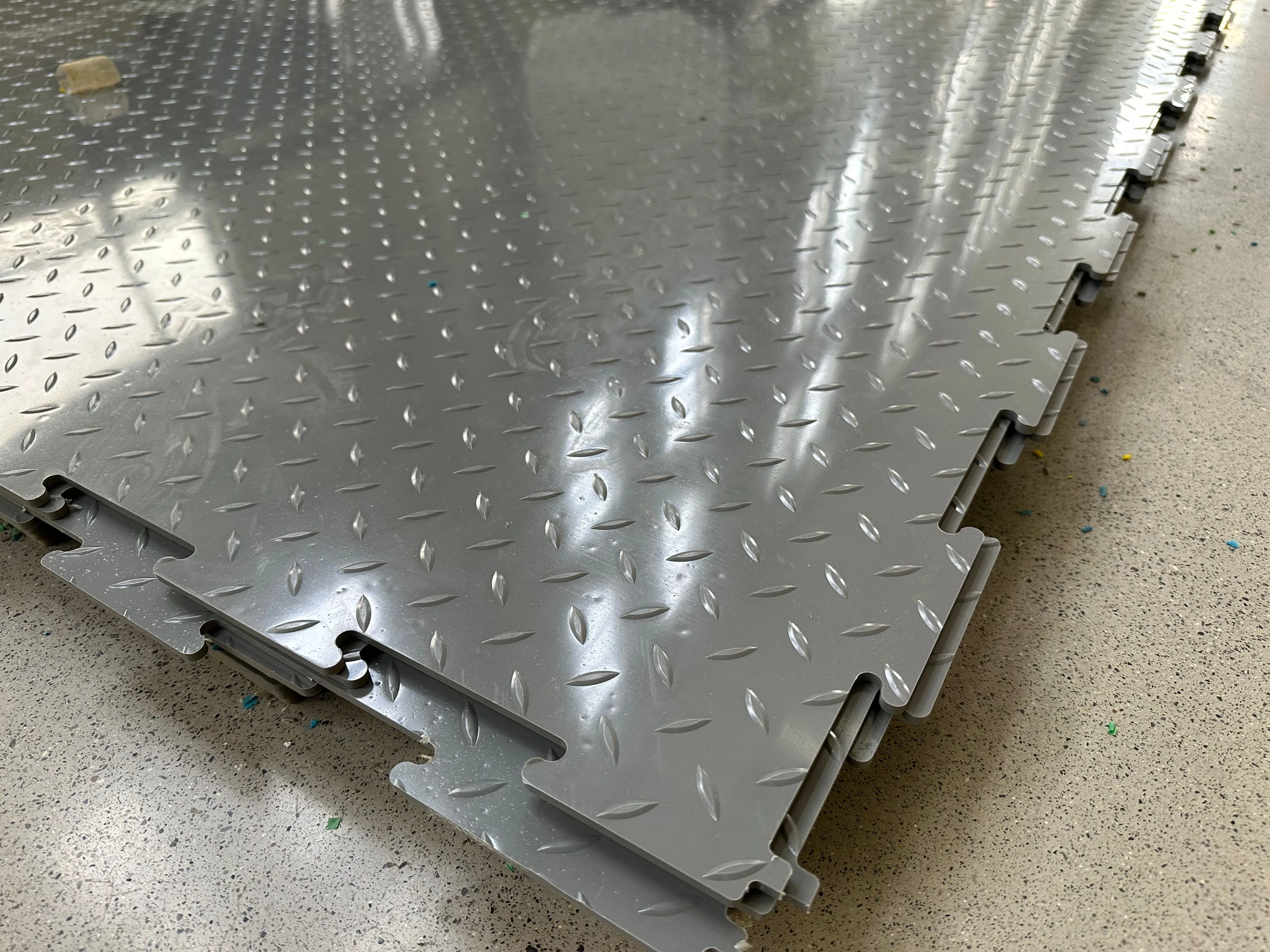

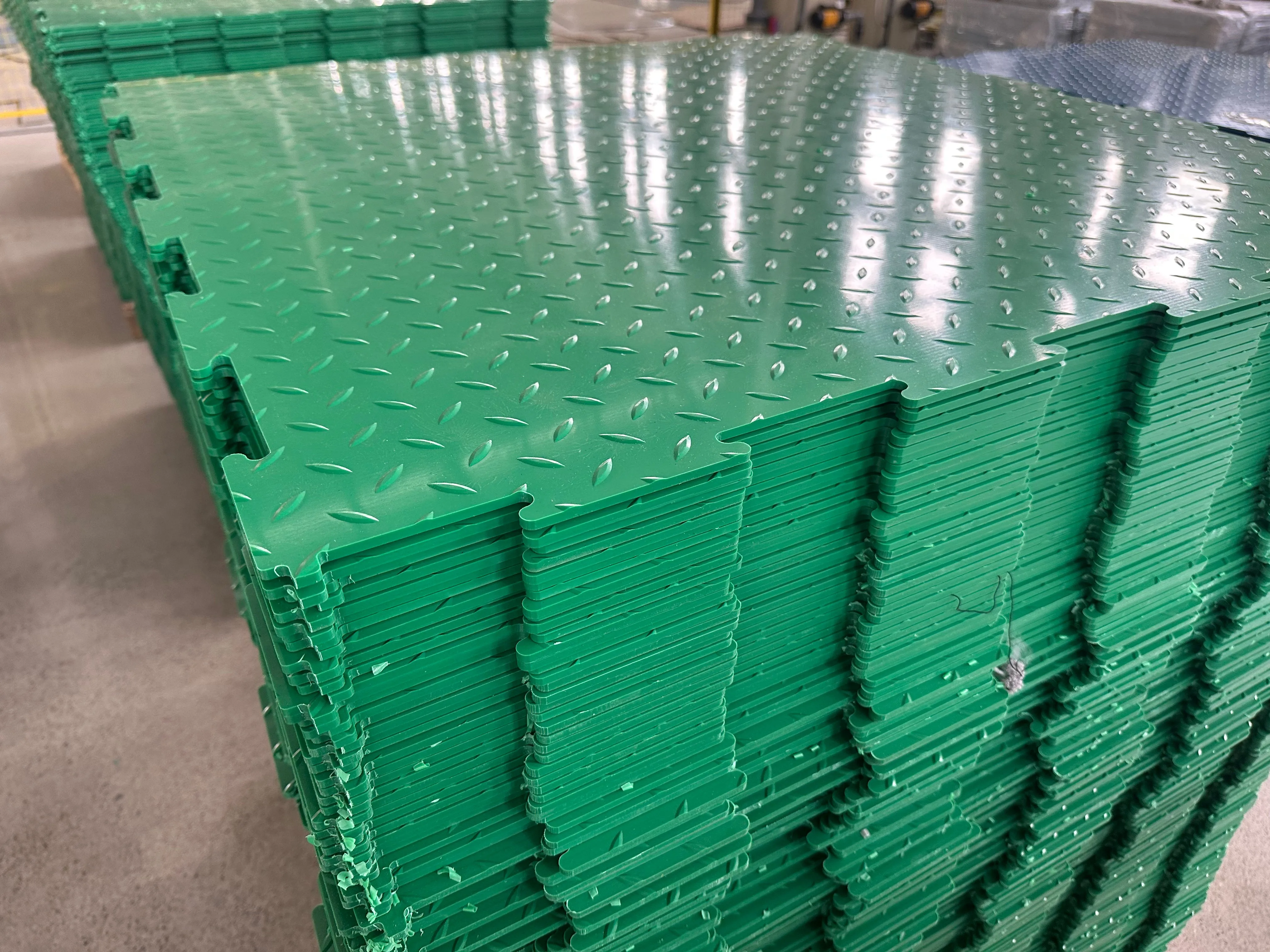

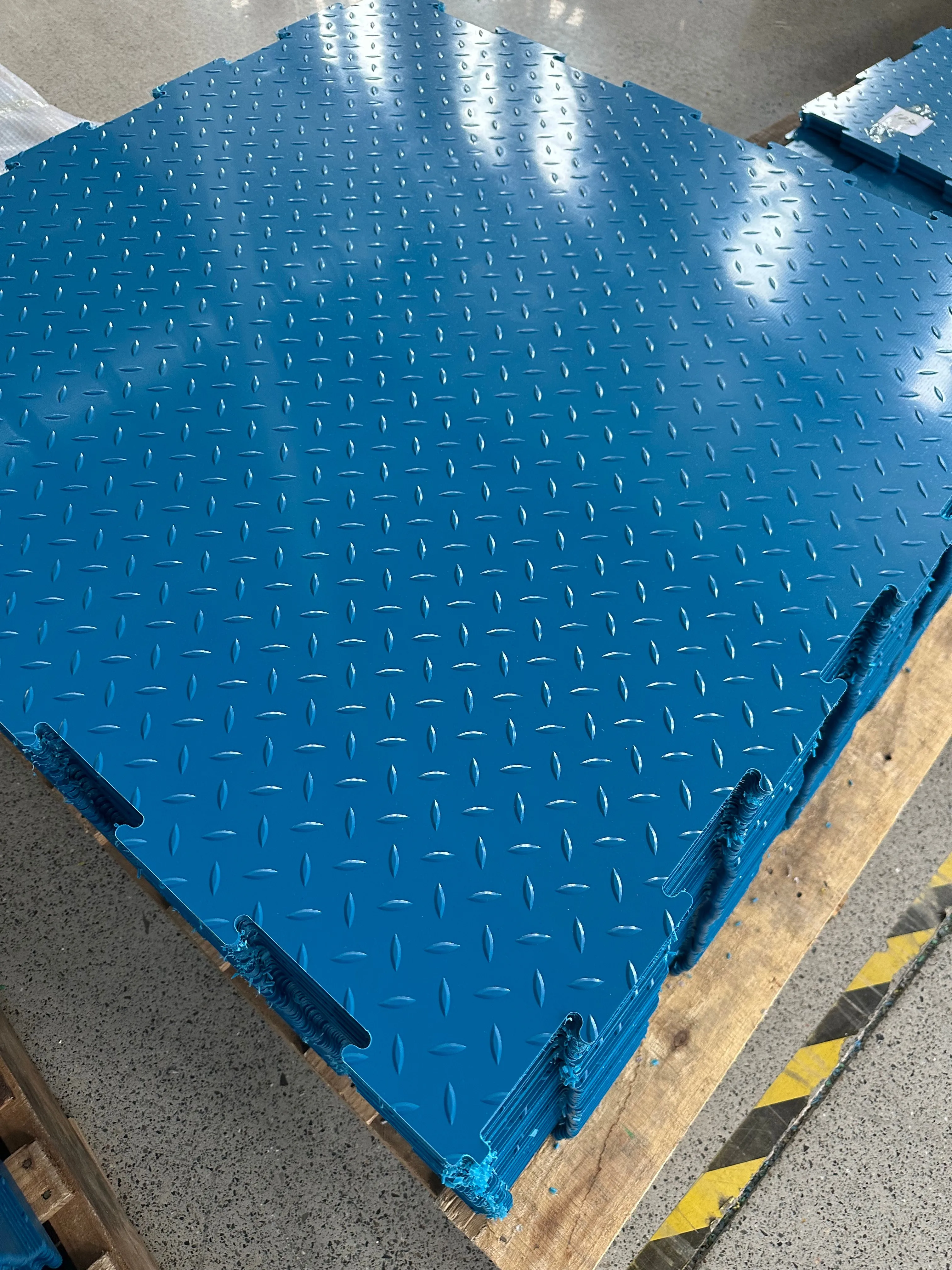

Factory Production & Stock Gallery
Looking for Custom HDPE Interlocking Flooring?
JSLT Polymers® provides direct export with factory pricing, custom CAD layouts, and free sample courier delivery within 48 hours.
